Cudy GS105 metalni 5-Port Gbit Desktop Switch, 5x RJ45 10/100/1000 (Alt. G1005) ver 2.0

-Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
-5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
-Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
-Store-and-Forward switching method
-Supports 16K MAC address auto-learning and auto-agin

Standard configurati: 5 10/100/1000M RJ-45 adaptive ports
Switching Capacity: 10Gbps
Throughput: 7.44Mpps
Packet Buffer: 1M
MAC Address: 1K
Jumbo Frame: 2K
Transfer Mode: Store and forward
MTBF: 100000 hour

Network protocol:
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)

Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Network Medium
10Base-T : Cat3,4,5 or above UTP(=100m)
100Base-TX : Cat5 or above UTP(=100m)
1000Base-TX : Cat5 or aboveUTP(=100m)

Working Temperature:-10~50°C
Storage Temperature:-40~70°C
Working Humidity :10%~90%,non-condensing
Storage Temperature:5%~90%,non-condensing
Working Height:Maximum10,000 feet
Storage heigh:Maximum 10,000 feet

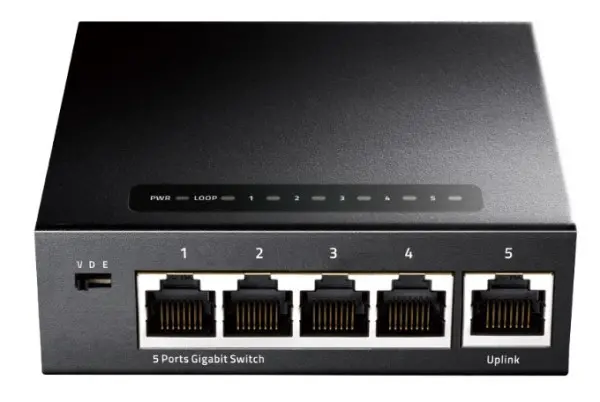

LED Indicators PWR(Power indicator)?Link(Network Link)?LOOP(Loop alarm)

DIP Switch
VLAN:Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5;
Default:Default mode, Support loop alarm;
Extend:Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port

Product Size:100*70*26mm
Package Size:175*120*63mm
Product Net-Weight:0.2kg
Product Gross-Weight:0.4kg
