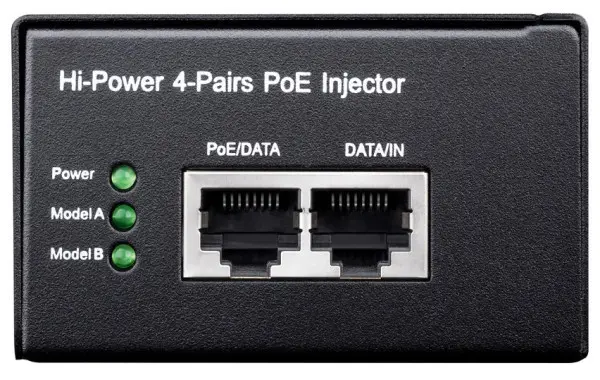

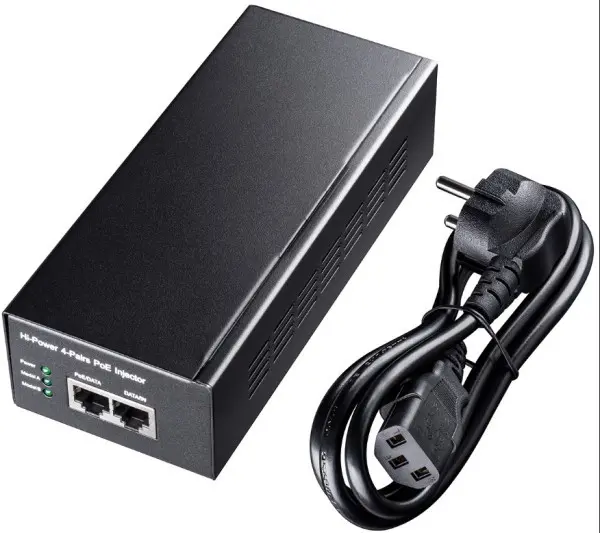

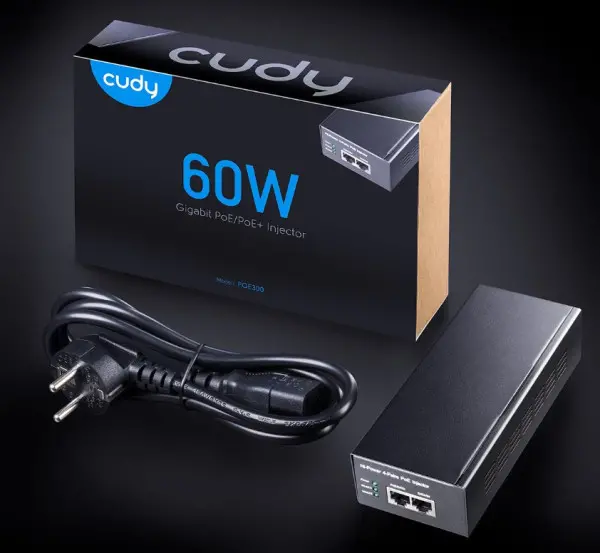

Cudy POE300 60W Gigabit PoE+/PoE Injector, 802.3at/802.3af Standard, Data&Power 100 Meters
Štampaj
Broj bodova koje osvajate kupovinom ovog artikla
40
1 bod = 1 RSD
Više detalja o bodovima
Web cena:
*Cena za gotovinu,
pouzećem ili kartice jednokratno
3.042 rsd.
Maloprodajna cena:
*Za odloženo plaćanje
3.291 rsd.
Ne odgovara Vam cena?
Upišite cenu koja Vam je odgovarajuća. Potrudićemo se da Vam damo najbolju ponudu
Molimo Vas upišite cenu koja je odgovarajuća.
Potrudićemo se da Vam u najskorijem roku damo najbolju ponudu.
Uspešno smo primili Vaš upit.
Kontaktiraćemo Vas u što skorijem vremenskom periodu.
Hvala Vam na poverenju. Početna60W Gigabit PoE+/PoE Injector
-Up to 60 watts PoE power supply
-1 10/100/1000M Ethernet Input port
-1 10/100/1000M PoE Output port
-IEEE 802.3at / IEEE 802.3af standard compliant
-Plug&play, simple setup with no configuration needed
Model POE300
No. of channels 1
Pass Through Data Ratesi 10/100/1000Mbps
Power over Ethernet Output
Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),
Output Power Voltage: 50Vdc
User Port Power: 60W
Input Power Requirements AC Input Voltage: 100 to 240 VAC
AC Input Current: 0.5A 100-240 VAC
AC Frequency: 50 to 60 Hz
Dimensions 145mm x 60mm x 40mm
Indicators System Indicator: AC Power
User Indicator: Channel Power
Connectors Shielded RJ-45, EIA 568A and 568B
Regulatory Compliance IEEE 802.3af (15.4W)
IEEE 802.3at (30W)
IEEE802.3at 4Pairs(60W)
Environmental Conditions Operating Ambient Temperature:0 to 45c
Operating Humidity:Maximum 80%, Non-condensing
Storage Temperature:-20 to 70c
Storage Humidity:Maximum 80%, Non-condensing
-Up to 60 watts PoE power supply
-1 10/100/1000M Ethernet Input port
-1 10/100/1000M PoE Output port
-IEEE 802.3at / IEEE 802.3af standard compliant
-Plug&play, simple setup with no configuration needed
Model POE300
No. of channels 1
Pass Through Data Ratesi 10/100/1000Mbps
Power over Ethernet Output
Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),
Output Power Voltage: 50Vdc
User Port Power: 60W
Input Power Requirements AC Input Voltage: 100 to 240 VAC
AC Input Current: 0.5A 100-240 VAC
AC Frequency: 50 to 60 Hz
Dimensions 145mm x 60mm x 40mm
Indicators System Indicator: AC Power
User Indicator: Channel Power
Connectors Shielded RJ-45, EIA 568A and 568B
Regulatory Compliance IEEE 802.3af (15.4W)
IEEE 802.3at (30W)
IEEE802.3at 4Pairs(60W)
Environmental Conditions Operating Ambient Temperature:0 to 45c
Operating Humidity:Maximum 80%, Non-condensing
Storage Temperature:-20 to 70c
Storage Humidity:Maximum 80%, Non-condensing
| Model | POE300 2.0 |
| Podržani 802.3 protokoli | 802.3i 10 Mbps, 802.3u 100 Mbps, 802.3ab 1 Gbps, 802.3af PoE, 802.3at PoE, 802.3bt PoE |
| PoE Uplink Stream | 1× GbE |
| PoE Downlink Stream | 1× GbE, 802.3af/at/bt |
| Downlink Pin Assignment | Four-Pair |
| Maksimalna udaljenost prenosa | Cat. 5e+ kabel: 100 m (ukupna dužina segmenta od uplink switch-a do PoE uređaja) |
| LED indikatori | Power, PoE Wattage |
| Priključci za napajanje | AC Inlet |
| Način napajanja | AC |
| Ulaz napajanja | 100–240V~, 50/60Hz, 1.5A |
| Maksimalni izlaz napajanja | 60W, 54V?1.11A |
| Zaštita napajanja | Surge, ESD, Overvoltage, Short-Circuit |
| EMC zaštita | IEC/EN 61000-4-2 Level 3 ESD: Kontakt 6kV, Vazduh 8kVIEC/EN 61000-4-5 Above Level 4 Surge: DM 4kV, CM 4kV; RJ45: CM 4kV |
| Metode uzemljenja | Grounding Point, Three-Prong Plug |
| Radna temperatura | -10 °C ~ 40 °C |
| Temperatura skladištenja | -40 °C ~ 70 °C |
| Radna vlažnost | 10% ~ 90% bez kondenzacije |
| Vlažnost pri skladištenju | 10% ~ 95% bez kondenzacije |
| Certifikati | FCC, CE |
| Dimenzije | 178 × 80 × 46 mm |
| Materijal kućišta | Metal |
| Težina | 628 g |
| Instalacija | Desktop, Wall-mount |
| Sadržaj pakovanja | POE300, Power Cord, Mounting Kit, Installation Guide |
Naziv: Cudy POE300 60W Gigabit PoE+/PoE Injector, 802.3at/802.3af Standard, Data&Power 100 Meters
Jedinica mere: kom
Uvoznik: Tačan podatak o uvozniku i zemlji porekla je naveden na deklaraciji na proizvodu.
