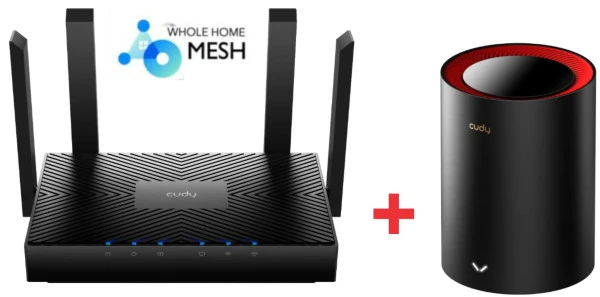

Cudy SET * WR3000 AX3000 Dual Band 2.4+5Ghz MESH Ruter + M3000 1-pack AX3000 Dual Band MESH

RUTER:

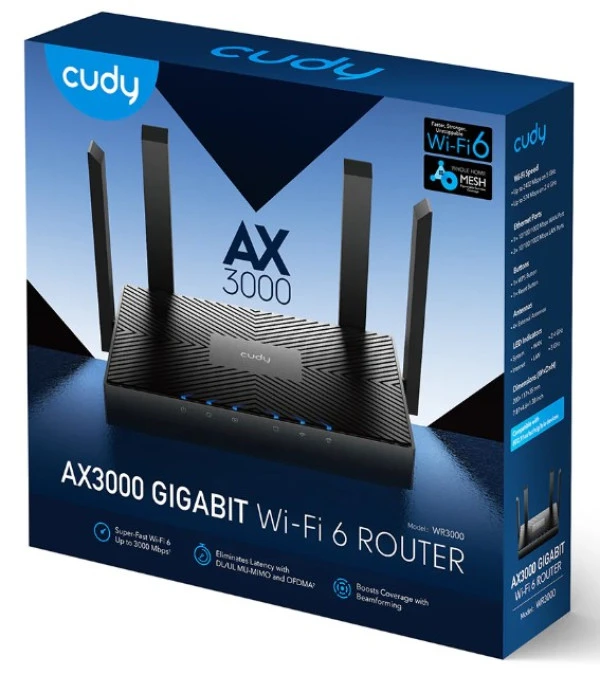

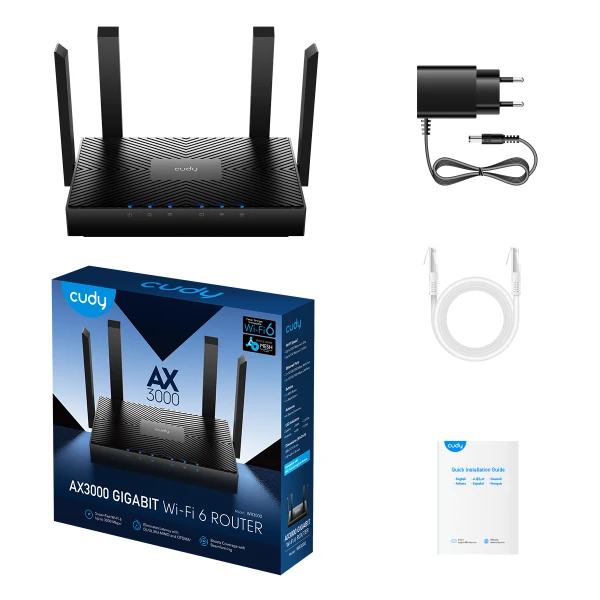

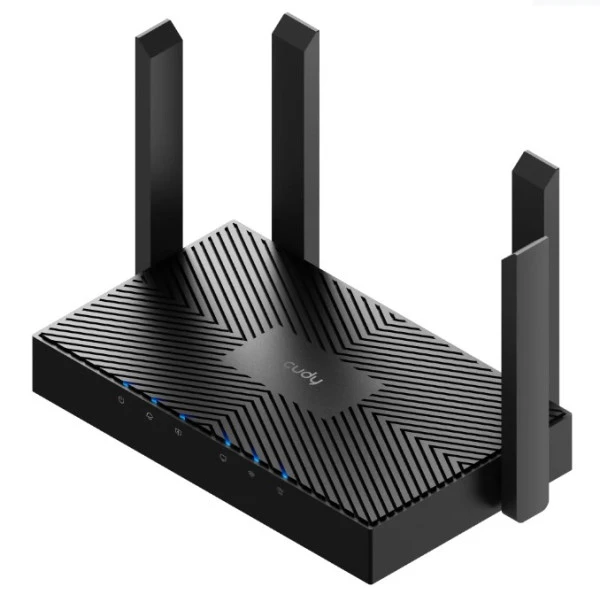

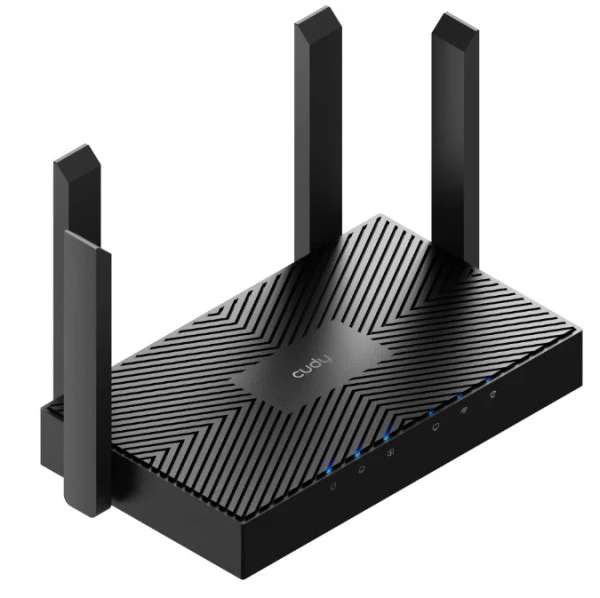

AX3000 Gigabit Wi-Fi 6 Mesh Router,
Model: WR3000
Super-brzi AX3000 Wi-Fi 6,
1,3 GHz Dual-Core Cortek-A53 CPU,
4× 10/100/1000Mbps Ethernet porta,
Širina kanala: 160 MHz,
DL/UL OFDMA i DL/UL MU-MIMO,
Wireguard/OpenVPN/L2TP/PPTP VPNs erver i klijent,
Cudi Mesh,
IPv4/IPv6,
TR069/TR098/TR181/TR111,

Model: WR3000
Processor: 1.3 GHz Dual-Core ARM Cortex-A53 CPU.
Flash / DDR: 16 MB NOR / 256 MB DDR3.
Antenna: 4× Fixed Omni-Directional Antennas,

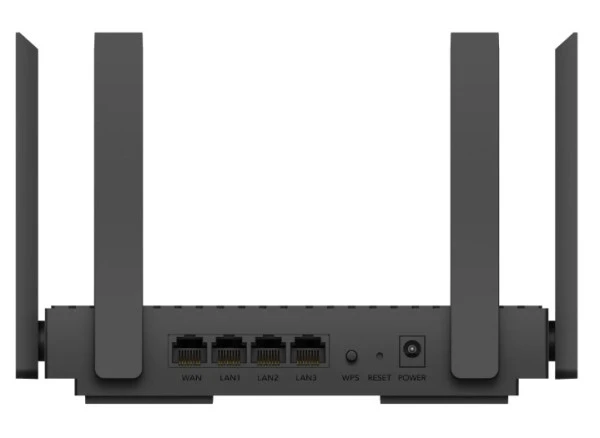

Interface: 1× 10/100/1000 Mbps WAN Port, 3× 10/100/1000 Mbps LAN Ports.
Button: WPS Button, Reset Button,
External Power Supply: 12 V / 1 A,
Dimensions: ( W x D x H ) 180*107*35mm (Not Include Antennas), 200*117*35mm (Include Antennas).
Wireless Standards: IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/b/g 2.4 GHz.
Frequency: 5 GHz, 2.4 GHz,
Wireless Bandwidth: 20/40/80/160 MHz
Signal Rate: 2402 Mbps (5 GHz), 574 Mbps (2.4 GHz),
Compatible with: 802.11a/b/g/n/ac Wi-Fi standards,
Transmit Power : CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), FCC: <30d Bm (2.4 GHz & 5 GHz).
Wireless Modes: Enable/Disable Wireless Radio, WMM,
Wireless Security: WPA-PSK, WPA2-PSK, WPA3-SAE WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-SAE,
Other Features: UL/DL OFDMA, UL/DL MU-MIMO, Beamforming, Mesh.
VPN Server and Clinet: Wireguard/OpenVPN/L2TP/PPTP.
DNS over TLS: Cloudflare/Google/Quad9.
WAN Type: Dynamic IP/Static IP/PPPoE,
DHCP: Server, DHCP Client List, Address Reservation,
Dynamic DNS: Compatible with 15 more DDNS providers,
Guest Network: 2.4 GHz guest network × 1, 5 GHz guest network × 1.
NAT: Port Forwarding, UPnP, DMZ.

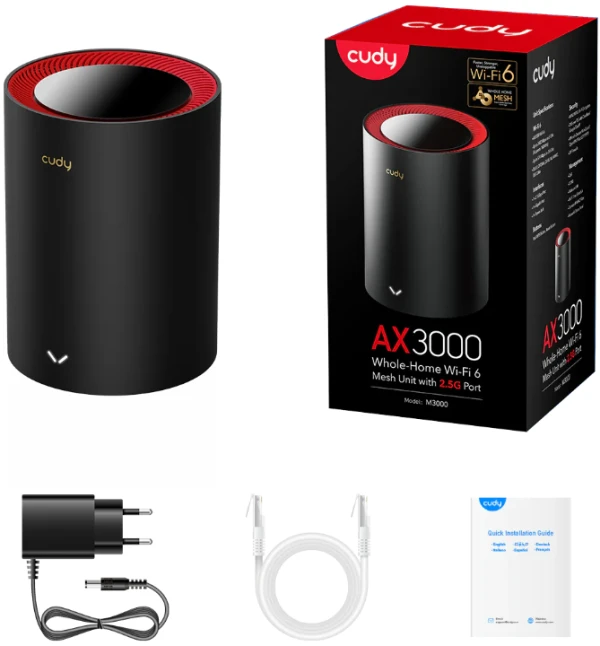

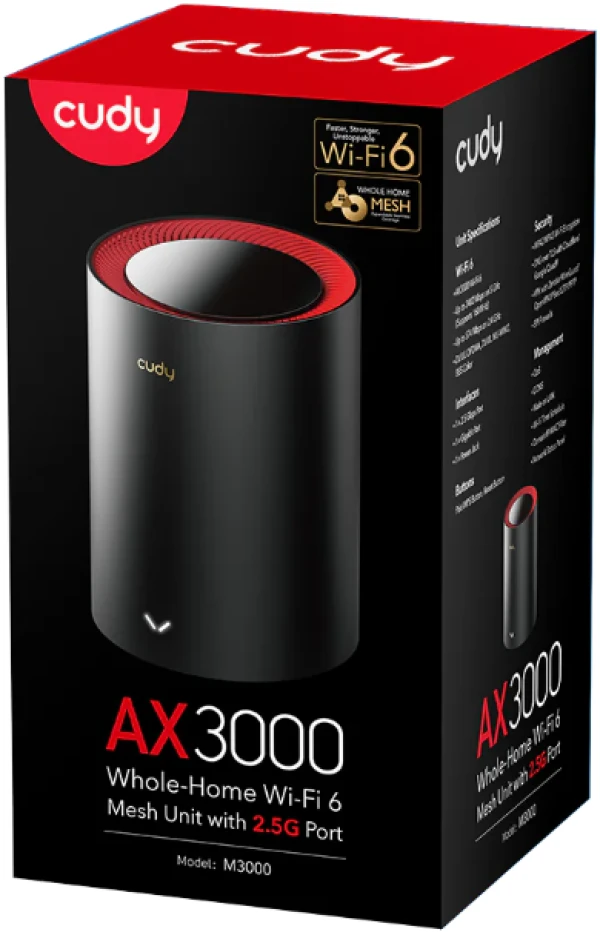

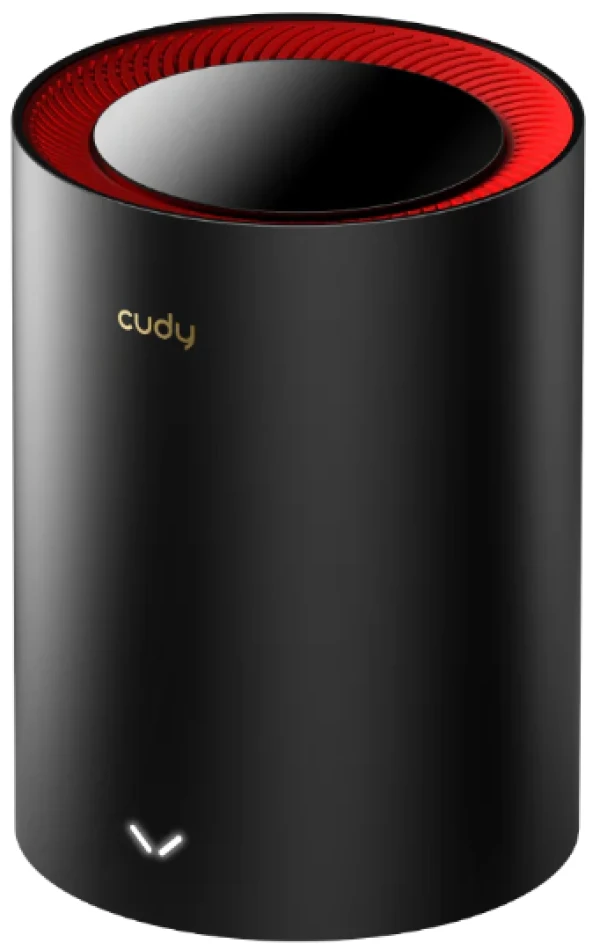

MESH:
Mrežni WiFi 6 sistem sa pet antena za obezbeđivanje superbrze mreže za velike domove sa 4K strimingom i zahtevima za igranje, sa Cudy Mesh, kontrolom aplikacija, VPN, HE160, OFDMA i MU-MIMO. Pogodno za pristup internetu do 2,5 Gbps.

1,3 GHz Dual-Core CPU
Dvopojasni Wi-Fi sa 5 tokova 6
200 povezanih uređaja
Fast Roaming
WireGuard, OpenVPN, ZeroTier, itd

Verzija modela: M3000 1.0
CPU: čipset MT7981BA; Detalji CPU-a 1,3 GHz Dual-Core, ARM Cortek-A53

Memorija/Stroage
Flash/ROM 128 MB (1 Gbit) NAND; DDR/RAM 256 MB (2 Gbit) DDR3

Bežični
5 GHz Wi-Fi brzina 2402 Mbps
2,4 GHz Wi-Fi brzina 574 Mbps
5 GHz Wi-Fi strimovi 3T3R (3×3 MIMO)
2,4 GHz Wi-Fi strimovi 2T2R (2×2 MIMO)
Wi-Fi opsezi EU + DFS, US + DFS
Wi-Fi antene 5× Unutrašnje
Maksimalno pojačanje antene od 5 GHz 5,1 dBi
Maksimalno pojačanje antene od 2,4 GHz 4,2 dBi
FEM ili PA/LNA 5 GHz: 3× Interni; 2,4 GHz: 2× Interni
Maksimalne performanse dometa: 130 m (427 stopa)
Unutarnji WiFi opseg varira u zavisnosti od rasporeda i materijala zidova. Pogledajte specifikacije performansi zida za predloge za postavljanje.
Performanse zida: Tri drvena zida debljine < 3,8 cm (1,5''); Jedan betonski zid debljine < 20 cm (7'') ili dva betonska zida debljine < 10 cm (4'')
Snaga Wi-Fi prenosa
CE:
<20 dBm (2,4 GHz)
<23 dBm (5,15 GHz ~ 5,35 GHz)
<30 dBm (5,47 GHz ~ 5,725 GHz)
FCC:
<24 dBm (5,25 GHz ~ 5,35 GHz i 5,47 GHz ~ 5,725 GHz)
<30 dBm (2,4 GHz i 5,15 GHz ~ 5,25 GHz i 5,725 GHz ~ 5,825 GHz)
