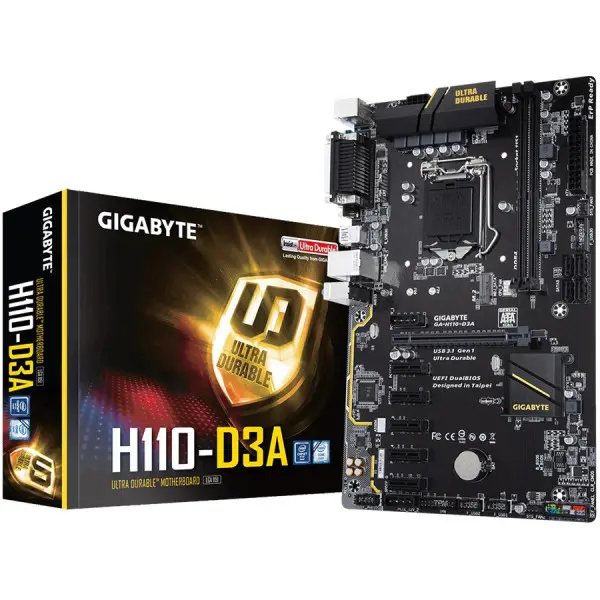

Matična ploča 1151 Gigabyte GA-H110-D3A VGA/RS232/LPT/M.2
Štampaj
Lista želja
Broj bodova koje osvajate kupovinom ovog artikla
70
1 bod = 1 RSD
Više detalja o bodovimaWeb cena:
*Cena za gotovinu,
pouzećem ili kartice jednokratno
6.623,00 rsd.
Maloprodajna cena:
*Za odloženo plaćanje
7.199,00 rsd.
Ne odgovara Vam cena?
Upišite cenu koja Vam je odgovarajuća. Potrudićemo se da Vam damo najbolju ponudu
Molimo Vas upišite cenu koja je odgovarajuća.
Potrudićemo se da Vam u najskorijem roku damo najbolju ponudu.
Uspešno smo primili Vaš upit.
Kontaktiraćemo Vas u što skorijem vremenskom periodu.
Hvala Vam na poverenju. Početna- Tip procesora
- Intel
- Podnožje
- Intel® 1151
- Čipset
- Intel® H110
- Format ploče
- ATX
- Podržani procesori
- Podrška za Intel® Core™ i7 procesoreIntel® Core™ i5 procesoreIntel® Core™ i3 procesoreIntel® Pentium® procesoreIntel® Celeron® procesore u LGA1151 pakovanju Količina L3 keša varira u zavisnosti od procesora
- Podržana memorija
- DDR4
- Memorija
- 2 x DDR4 DIMM soketa podržavaju do 32 GB sistemske memorije Dvo-kanalna memorijska arhitektura Podrška za DDR4 2133 MHz memorijske module Podrška za ECC UDIMM 1Rx82Rx8 memorijske module (koji rade u non-ECC modu) Podrška za non-ECC UDIMM 1Rx82Rx81Rx16 memorijske module
- Integrisana grafička karta
- Integrisani grafički procesor - Intel® HD Graphics podrška: 1 x D-Sub port, podržava maksimalnu rezoluciju od 1920x1200@60 Hz Maksimalna deljena memorija od 1GB
- Slotovi za proširenje
- 1 x PCI Express x16 slot, radi kao x16 (PCI Express x16 slot je kompatibilan sa PCI Express 3.0 standardom) 5 x PCI Express x1 slota (PCI Express x1 slotovi su kompatibilni sa PCI Express 2.0 standardom)
- Storage
- 1 x M.2 connector (Socket 3, M key, type 224222602280 SATA SSD support) 4 x SATA 6Gbs connectors
- Mrežna karta
- Realtek® GbE LAN chip (101001000 Mbit)
- Zvučna karta
- 245.17.1-kanala * Da bi konfigurisali 7.1-kanalni audio, treba da koristite HD modul prednjeg panela i aktivirate multi-kanalne audio mogućnosti preko audio drajvera. Realtek® ALC887 kodek Audio visoke definicije Podržava SPDIF Out
- USB
- 6 x USB 2.01.1 portova (2 porta na zadnjem panelu, 4 porta dostupna preko internih USB priključaka) 4 x USB 3.02.0 porta (2 porta na zadnjem panelu, 2 porta dostupna preko internog USB priključka)
- Konektori na zadnjoj strani
- 1 x PS2 mouse port 1 x PS2 Keyboard port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB 3.1 Gen 1 ports 2 x USB 2.01.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
- Interni konektori
- 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x PCIe power connectors 1 x CPU fan header 3 x system fan headers 4 x SATA 6Gbs connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x SPDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.01.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper
- Bios
- 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Ostalo
- Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED AutoGreen Cloud Station EasyTune Fast Boot ONOFF Charge Smart TimeLock Smart Keyboard Smart Backup System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install
- Chipset
- Intel H110
- Supports Central Processor Unit
- Intel Celeron
Intel Pentium
Intel Core i5
Intel Core i3
Intel Core i7 - Max. CPU Bus Clock Rate
- 8 GTsec
- CPU Socket Standard
- Socket 1151
- CPU Maximum Quantity Supports
- 1
- Memory Type
- DDR4 SDRAM
- Memory Form Factor
- DIMM 288-pin
- Memory Speed
- 2133MHz(PC4-17000)
2400MHz(PC4-19200) - Maximum Installable System Memory Storage Capacity
- 32 GB
- Memory Slot Total Quantity
- 2
- Provides Error Checking Method
- non-ECC
- Memory Features
- Dual Rank
Single Rank
XMP - Storage Controller Type
- SATA III
- Storage Controller Form Factor
- integrated
- SATA Controller Interface Type
- Serial ATA III600
- Audio Integrated
- yes
- Device Location
- Integrated
- Audio Chipset
- Realtek ALC887
- Audio Output Mode
- 7.1 Channel Surround
- Compliant Audio Standards
- High Definition Audio
- LAN Integrated
- yes
- Data Link Protocol Supports
- Gigabit EthernetFast EthernetEthernet
- PCI Express 2.0 x1 Slot Quantity
- 5
- PCI Express 3.0 x16 Slot Quantity
- 1
- M.2 Slot Quantity
- 1 (Socket 3)
- PS2
- 2
- Parallel
- 1
- Serial
- 1
- VGA
- 1 (15-pin D-sub)
- USB 3.1 Gen 1
- 2 (USB 3.1 (type A))
- USB 2.0
- 2 (4-pin USB (type A))
- LAN
- 1 (RJ-45)
- Audio Interface
- 1 (3.5-mm minijack) ( x 3)
- SATA III
- 4
- BIOS Type
- AMI
- BIOS Features
- WfM 2.0 Support
PnP 1.0a Support
Dual BIOS
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
2 x 64 Mbit Flash - Power Connectors Type
- 24+8 pin
- Form Factor
- ATX
- Height (mm)
- 190 mm
- Width (mm)
- 305 mm
- Warranty Products Returnable
- Yes
- Warranty Term (month)
- 36 month(s)
- Warranty validation Criteria
- Serial Number
- Pack Weight Brutto (kg)
- 0.8 kg
- Pack Weight Netto (kg)
- 0.5 kg
- Pieces in pack
- 1
- Box Weight Brutto (kg)
- 0.8 kg
- Retail Packaging Net Weight Carton
- 0.8 kg
- Retail Packaging Net Weight Plastic
- 0.8 kg
- Packs in Box
- 1
- Package Type
- Retail
Naziv: Matična ploča 1151 Gigabyte GA-H110-D3A VGA/RS232/LPT/M.2
Jedinica mere: kom
Uvoznik: Tačan podatak o uvozniku i zemlji porekla je naveden na deklaraciji na proizvodu.
