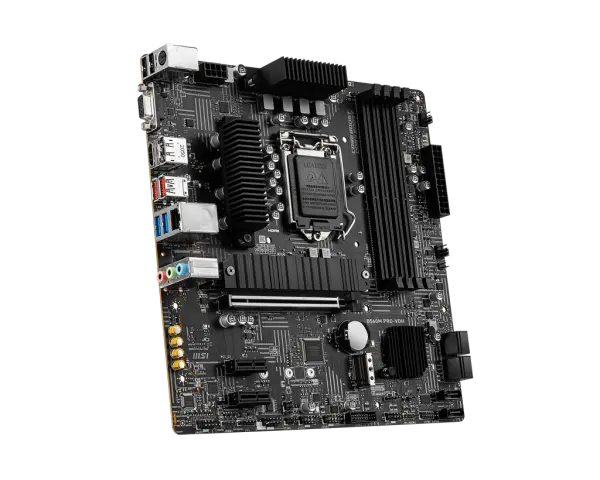

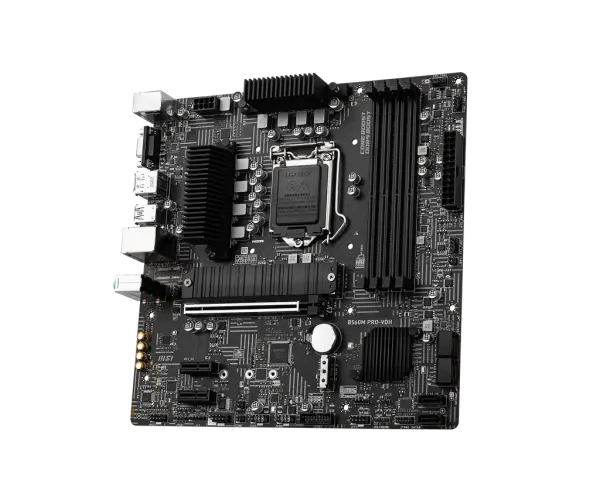

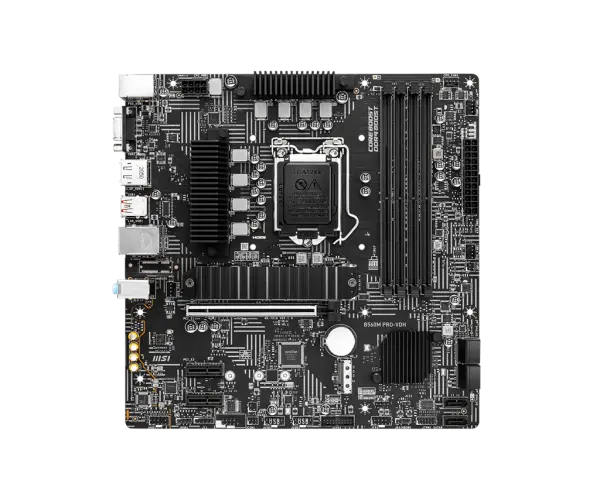

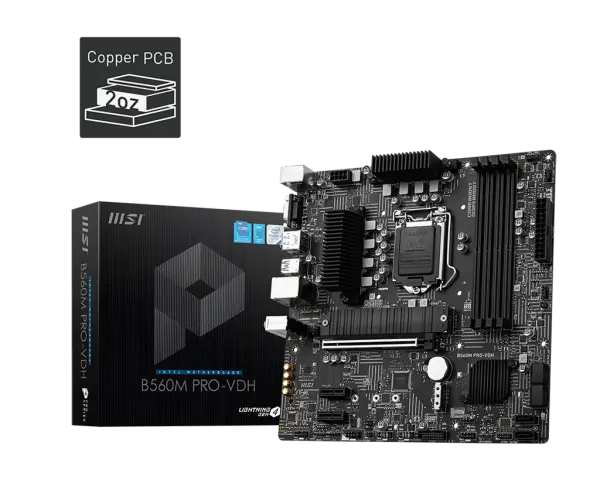

MB s1200 MSI B560M PRO-VDH

CPU

Supports 10th Gen Intel^® Core^™ Processors, 11th Gen Intel^® Core^™ Processors, Pentium^® Gold and Celeron^® Processors¹

Processor socket LGA1200

1. Please go to intel.com for compatibility information

Chipset

Intel^® B560 chipset

Memory

• 4x DDR4 memory slots, support up to 128GB¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5066 MHz
  • 1DPC 2R Max speed up to 4600+ MHz
  • 2DPC 1R Max speed up to 4266+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

Expansion Slot

• 1x PCIe x16 slot (From CPU)
  • PCI_E1 (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel^® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel^® CPU
• 2x PCIe 3.0 x1 slots (From B560 chpiset)

Onboard Graphics

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz¹²
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz¹²
• 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz¹²

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

Audio

• 7.1-Channel High Definition Audio

LAN

Storage

• 6x SATA 6Gb/s ports (From B560 chipset)
• 2x M.2 slot (Key M)
  • M2_1 slot
    • Supports up to PCIe 4.0 x4 for 11th Gen Intel^® CPU (From CPU)
    • Supports up to PCIe 3.0 x4 for 10th Gen Intel^® CPU (From B560 chipset)
    • Supports up to SATA 6Gb/s (From B560 Chipset)¹
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot² (from B560 chipset)
    • Supports up to PCIe 3.0 x4
    • Supports 2242/ 2260/ 2280 storage devices
    • Intel^® Optane™ Memory Ready¹
• Supports Intel^® Smart Response Technology for Intel Core^™ processors

1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel^® B560 Chipset

• 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 2x USB 2.0 Type-A ports on the back panel

USB Hubs GL850G

• 4x USB 2.0 ports are available through the internal USB 2.0 connectors

Form Factor

• Micro-ATX Form Factor
• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

BIOS Features

• 1x 256 Mb flash
• UEFI AMI BIOS
• ACPI 6.2, SMBIOS 3.0
• Multi-language

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 2x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x Serial port connector
• 1x Tuning Controller Connector

LED Feature

• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 4x EZ Debug LED

Back panel Connectors
