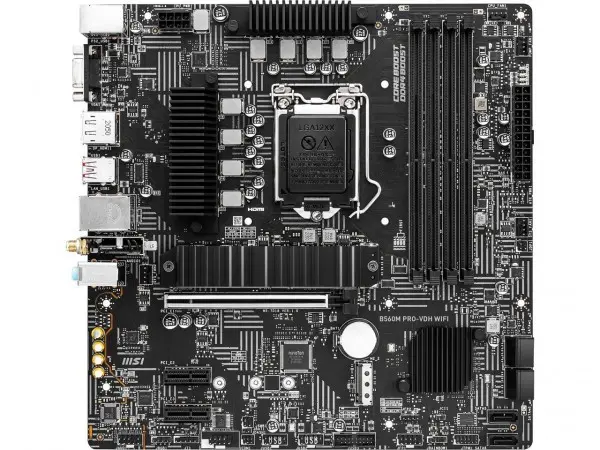

MB s1200 MSI B560M PRO-VDH WIFI
Štampaj
Lista želja
Broj bodova koje osvajate kupovinom ovog artikla
200
1 bod = 1 RSD
Više detalja o bodovima
Web cena:
*Cena za gotovinu,
pouzećem ili kartice jednokratno
19.502,00 rsd.
Maloprodajna cena:
*Za odloženo plaćanje
21.291,00 rsd.
Ne odgovara Vam cena?
Upišite cenu koja Vam je odgovarajuća. Potrudićemo se da Vam damo najbolju ponudu
Molimo Vas upišite cenu koja je odgovarajuća.
Potrudićemo se da Vam u najskorijem roku damo najbolju ponudu.
Uspešno smo primili Vaš upit.
Kontaktiraćemo Vas u što skorijem vremenskom periodu.
Hvala Vam na poverenju. Početna| Brand | MSI |
|---|---|
| Model | B560M PRO-VDH WIFI |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core Processors Supports Intel Pentium Gold and Celeron Processors |
| Chipset | Intel B560 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4×288pin |
|---|---|
| Memory Standard | Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR) Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 1DPC 2R Max speed up to 4600+ 2DPC 1R Max speed up to 4266+ 2DPC 2R Max speed up to 4000+ |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slot (Key M): M2_1 slot: Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU* Supports 2242/2260/2280/22110 storage devices M2_2 slot (from B560 chipset): Supports up to PCIe 3.0 x4 Supports 2242/2260/2280 storage devices Intel Optane Memory Ready** * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. ** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel Wi-Fi 6 AX201 |
| Bluetooth | Bluetooth 5.1 |

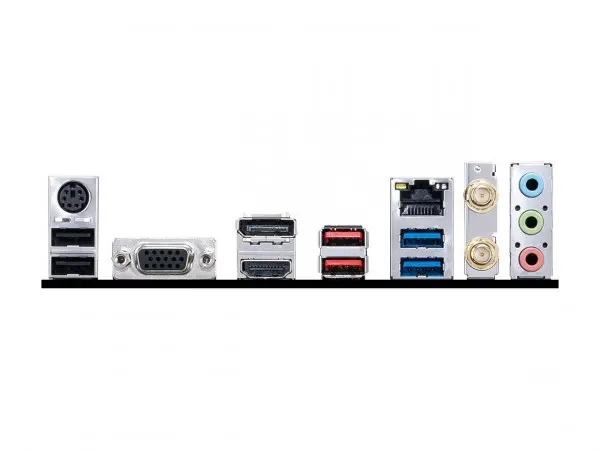

| Back I/O Ports | 1 x DisplayPort 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo WiFi / Bluetooth 2 x USB 2.0/1.1 2 x USB 3.2 Gen 1 Type-A 2 x USB 3.2 Gen 2 Type-A 3 x Audio Jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x Serial port connector 1 x Tuning Controller Connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5066(OC) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength |
|---|
| Brand | MSI |
|---|---|
| Model | B560M PRO-VDH WIFI |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core Processors Supports Intel Pentium Gold and Celeron Processors |
| Chipset | Intel B560 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4×288pin |
|---|---|
| Memory Standard | Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR) Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 1DPC 2R Max speed up to 4600+ 2DPC 1R Max speed up to 4266+ 2DPC 2R Max speed up to 4000+ |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slot (Key M): M2_1 slot: Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU* Supports 2242/2260/2280/22110 storage devices M2_2 slot (from B560 chipset): Supports up to PCIe 3.0 x4 Supports 2242/2260/2280 storage devices Intel Optane Memory Ready** * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. ** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel Wi-Fi 6 AX201 |
| Bluetooth | Bluetooth 5.1 |
| Back I/O Ports | 1 x DisplayPort 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo WiFi / Bluetooth 2 x USB 2.0/1.1 2 x USB 3.2 Gen 1 Type-A 2 x USB 3.2 Gen 2 Type-A 3 x Audio Jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x Serial port connector 1 x Tuning Controller Connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5066(OC) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength |
|---|
Naziv: MB s1200 MSI B560M PRO-VDH WIFI
Jedinica mere: kom
Uvoznik: Tačan podatak o uvozniku i zemlji porekla je naveden na deklaraciji na proizvodu.
