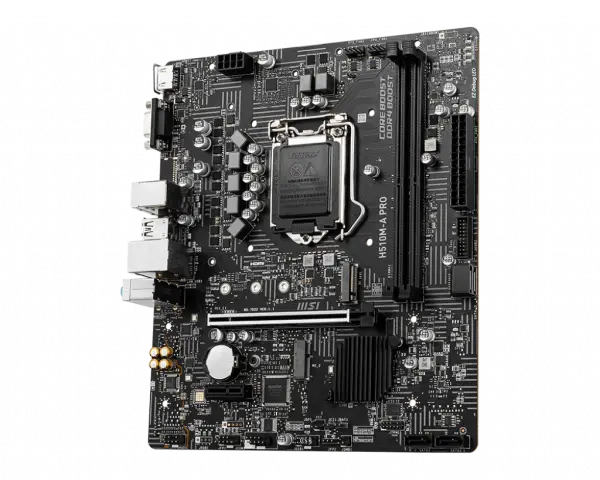

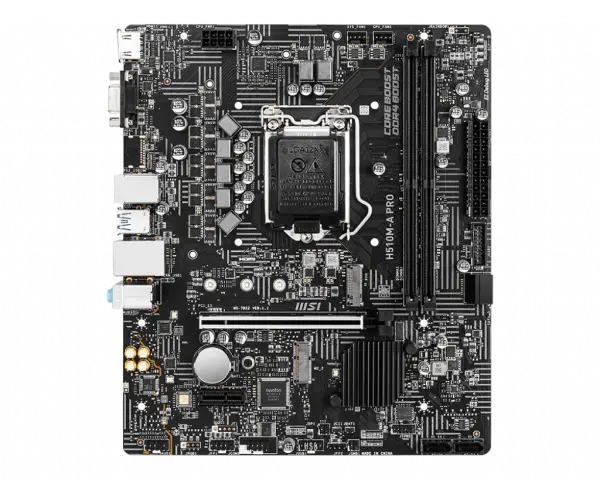

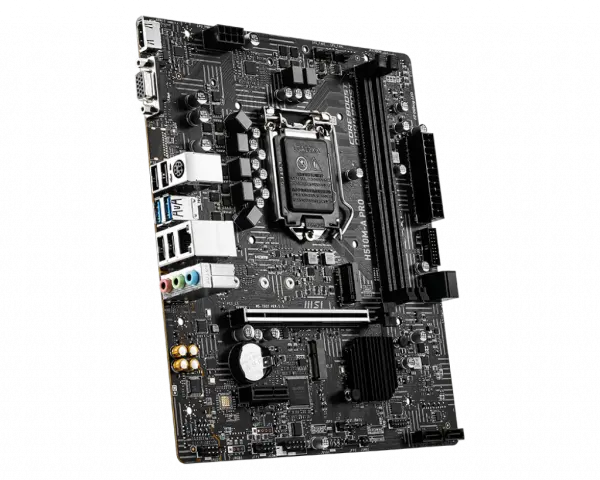

MB s1200 MSI H510M-A PRO

Processor

Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors¹

1. Please go to www.intel.com for more compatibility information.

See supported processors

Chipset

Intel^® H510 Chipset

Memory

• 2x DDR4 memory slots, support up to 64GB¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory.

Expansion Slot

• 1x PCIe x16 slot (From CPU)
  • Support up to PCIe 4.0 for 11th Gen Intel^® CPU
  • Support up to PCIe 3.0 for 10th Gen Intel^® CPU
• 1x PCIe 3.0 x1 slot (From PCH)
• 1x M.2 slot with E key for WiFi (PCIe) module only(M2_2)

Onboard Graphics

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz ^{1 2}
• 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz¹

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

Storage

• 4x SATA 6Gb/s ports (From H510 Chipset)
• 1x M.2 slot (Key M)
  • M2_1 slot (From H510 Chipset)
    • Supports up to PCIe 3.0 x4
    • Supports SATA 6Gb/s¹
    • Supports 2242/ 2260/ 2280 storage devices

1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

Audio

Realtek^® ALC892/ ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel^® I219V 1Gbps LAN controller

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector

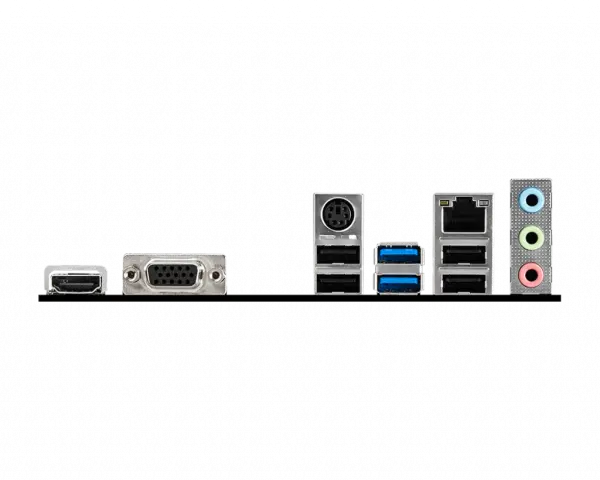

Back panel ports

Dimensions

• mATX Form Factor
• 9.29 x 7.95 in. (23.6 cm x 20.2 cm)

Mounting

6 mounting holes

Operating System

Support for Windows^® 10 64-bit
