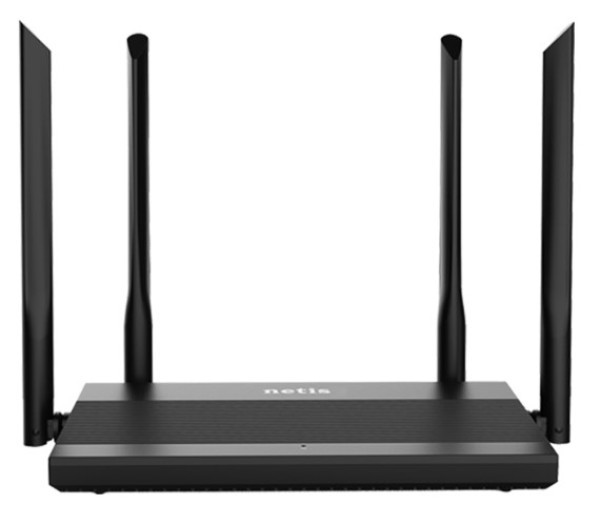

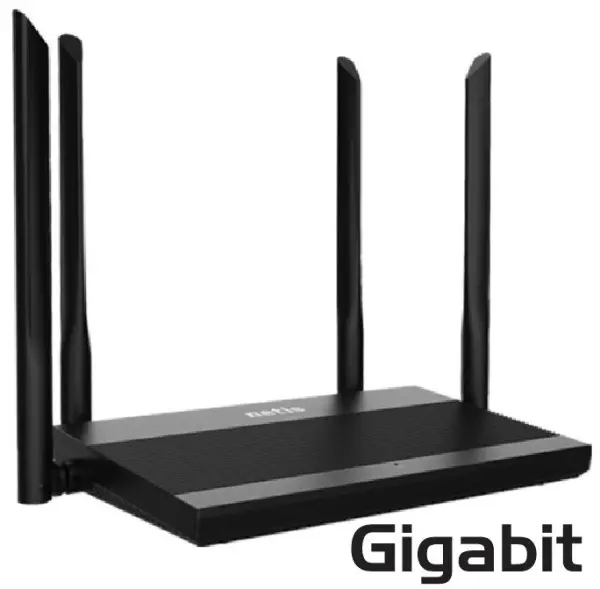

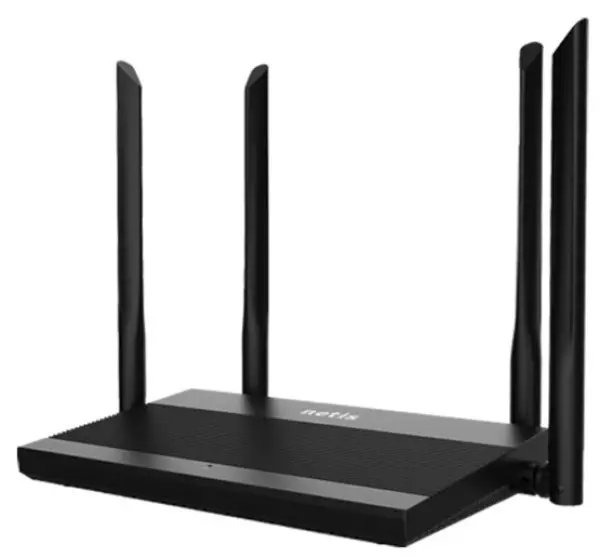

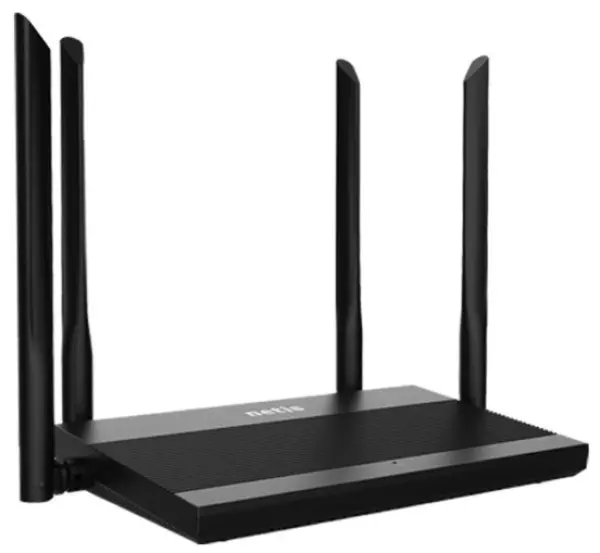

Netis N3 AC1200 Dual Band 2.4+5Ghz Wi-Fi Router 1W/3LAN Gbit, 4x5dBi, Hi Power, AP/REP/Client TR069

AC1200 Wireless Dual Band Gigabit Router

The netis router N3 equipped with 802.11AC Wi-Fi technology, will offer you simultaneous dual band connection with 867Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, ideal for faster downloading, online gaming, Internet calling and HD video streaming. Also, it provides with full gigabit ports which are 10 times faster than conventional Fast Ethernet connections.Support TR069.


• Works seamlessly with all 802.11a/b/g/n/ac devices
• Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections
• Various WAN connection types in AP Router mode- DHCP, Static IP, PPPoE, L2TP,
PPTP, Dual Access (Russia PPPoE/PPTP/L2TP), WISP
• Multiple wireless modes- AP, Repeater, Client
• Multi-SSID providing up to 6 additional separate networks for guests and friends
• 4* 5dBi high gain antennas
• Easy wireless security setup at a push of the WPS button
• Intelligent bandwidth control to manage the bandwidth usage for each computer
reasonably
• Internet Access Control- IP filtering, MAC Filtering, Domain Filtering based on time
• Complete Gigabit ports ensuring high speed Ethernet connection
• Quick setup, with built-in multilingual management page

Wireless
Standards IEEE 802.11b/g/n 2.4GHz
IEEE 802.11a/n/ac 5GHz
Signal Rate Up to 300Mbps2.4GHz
UP to 867Mbps 5GHz
Frequency Range 2.4-2.4835GHz;5.180-5.825GHZ
Transmit Power 20dBm(MAX)
Data Transfer Rate 802.11ac:
80MHZ(433Mbps, 867Mbps)
802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
802.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Wireless Modes AP, Repeater, Client, Multi-SSID
Wireless Security WEP/WPA-PSK/WPA2-PSK Encryption
Wireless MAC Filtering
Hardware
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
Interface 1*10/100/1000Mbps Auto MDI/MDIX RJ45 WAN port
3*10/100/1000Mbps Auto MDI/MDIX RJ45 LAN port
LED Indicators SYS, WPS, 5G, 2.4G, WAN, LAN1~LAN4
Buttons Reset
Antenna 4* external fixed 5dBi antenna
Power Supply DC 12V/1.0A(Output)
Dimensions (L x W x H ) 182 x 108 x 25mm
Software
WAN Type DHCP, Static IP, PPPoE, L2TP, PPTP, WISP
Others Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,

VPN Pass-through, Dynamic DNS, Static Routing, Backup & Restore

Support TR069
Certification FCC, CE, EAC
Environment Operating Temperature: 0?~40?
Storage Temperature: -40?~70?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package 1* N3
1* 12V/1.0A Power Adapter
1* Quick Installation Guide (Multilingual
