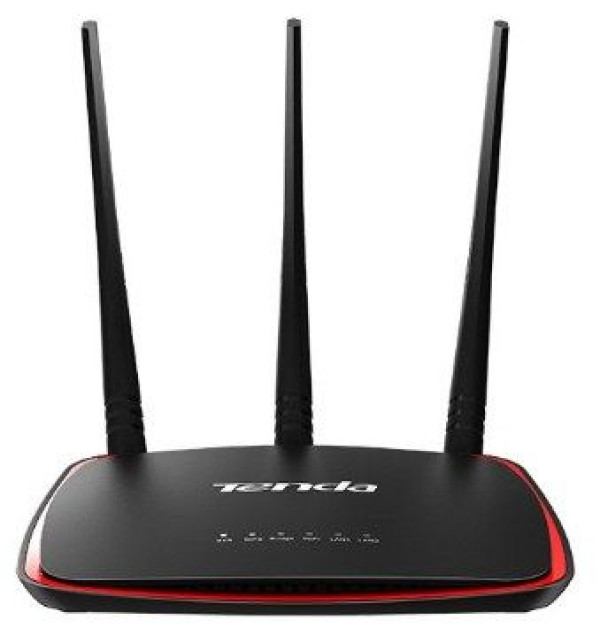

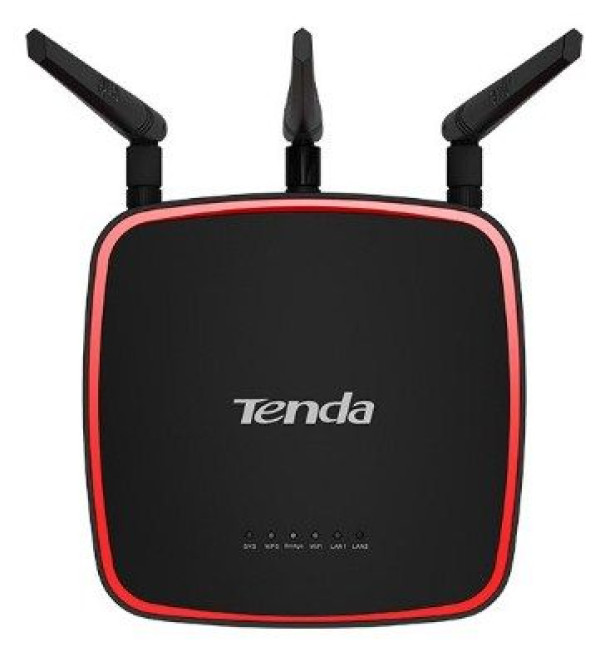

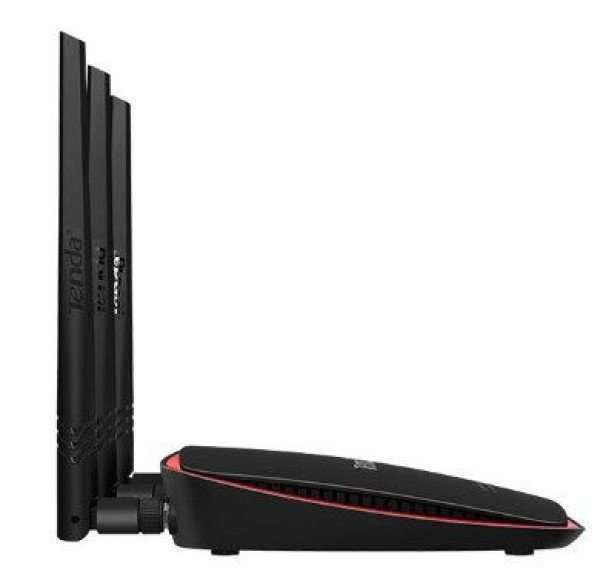

Tenda AP5 N300 WiFI access point 200mw ruter/WISP/repeater/client/ WPS 2xL Detachable 3x5dBi, POE

Dimension148*146.2*31.5mm
Standard&ProtocolIEEE 802.11n/g/b
Interface2 * 10/100M Ethernet Port (RJ45)
Antenna3*5dBi Detachable Omni Directional (RP-SMA) skidajuce antene !
Button1*Reset
1*Range Extender
Power MethodDC 12V=1A Passive PoE
Passive PoE power supplyUp to 40 meters Passive PoE is supported(cat5e or up)
Reception Sensitivityb mode: 1M -89dBm@8%
11M -87dBm@8% PER
g mode: 54M -74dBm@8% PER; n mode: 72.2M -74dBm@8% PER
150M -72dBm@8% PER
LEDSYS,WPS,Bridge,WiFi,LAN1,LAN2
Hardware DeploymentDesktop/Wall Mount
Frequency Range2.4GHz-2.483GHz
LAN SettingsStatic IP
Dynamic IP
DHCP ServerDHCP Server
Clients list
Wireless Rate11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Operating ModeAccess Point
Universal Repeater
Station(Client)
WISP (Client+Router)
Client+AP
Wireless Function8 SSID
Enable/Disable Wireless Radio
Broadcast SSID
SSID Hidden automatically when exceed client limit
Client limit for SSID
Transmission output power
AP isolation
RSSI threshold for wireless clients
WMM capable
APSD capable
Access control based mac address
Wireless Client list
VLAN for multi SSID
Wrieless Security64/128 WEP
WPA-PSK
WPA2-PSK
WPA&WPA2-PSK
WPA
WPA2
Video user capacity5
wireless users capacity20+
Diagostic ToolWireless site survey
Ping
Traceroute
Network ServiceSchedule Reboot
Http/Https
Managed by ACAC500
Package Content300Mbps Wireless N High Power Access Point AP5
1*PoE Injector
1*Quick Installation Guide
1*Ethernet cable
1*Power Adapter
2*Screws
2*Plastic Bolt
Management ToolReboot
Restore to factory default
System Log
Firmware update
Time&Date Setting
Backup/Restore Configuration
Username Managerment
TemperatureOperating Temperature:-10?~45?
Storage Temperature: -30?~70?
HumidityOperating Humidity:10%~90% non-condensing
Storage Humidity:5%~90% non-condensing
Default SettingsIP Address: 192.168.0.254
Login Username:admin
Login Password:admin
CertificationFCC/CE/Rohs/VoC
