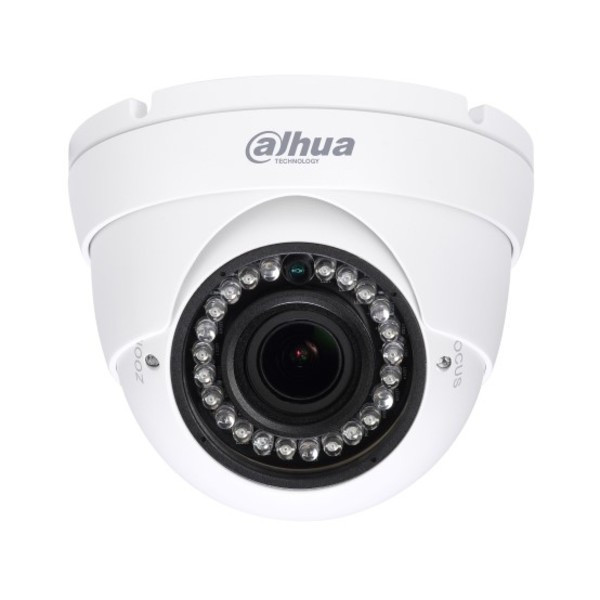

x-KAMERA Dahua HAC-HDW1200RP-0280B HDCVI 2Mpix 3.6mm, 20m, FULL HD antivandal kamera

1/2.7" 2Megapixel CMOS 25/30fps@1080P
25/30/50/60fps@720P ICR, OSD
3.6mm fixed lens(2.8mm optional)
Max. IR distance: 20m(66ft)
Smart IR CVI/TVI/AHD/CVBS output switchable DC12V
Image Sensor 1/2.7" CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F2.0, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 12
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (6mm Optional)
Max Aperture F2.0
Angle of View H: 89.9° (59.4°)
Focus Control N/A
Close Focus Distance 600mm (1800mm)
23.62'' (70.87'')
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±25%
Power Consumption Max 2.8W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal
Resistance NA
Construction
Casing Plastic
Dimensions F85.4mm×69.1mm(F3.36"×2.72")
Net Weight 0.11kg (0.24lb)
Gross Weight 0.17kg (0.37lb)
